High Speed Oval


  • High Speed Oval with banked curves up to 49.7°
  • Zero side force up to 250 km/h
  • Speed sensor in lane 1 and 2
Complete dimensions Length: 12.3 km
Straight Lanes West / East Length: each 4.0 km (5 lanes)
Curves North / South Length: each 2.15 km (6 lanes)

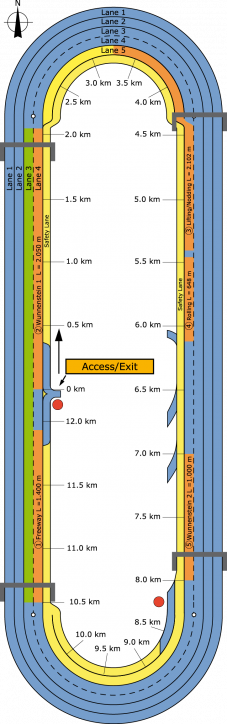

Streckenskizze

Special elements of the Hight Speed Oval

The following modules are integrated:

1. Freeway

Design: Concrete

Reproduction of an American hightway (FW 710 L.A.)

Concrete plates with scouring, conrete plate jolts upwards


Straight (one lane)

Length: 1.400 m  Width: 4 m

2. Wunnenstein 1

Design: Concrete

Reproduction of the state motorway section (A81 before the Wunnenstein service area as of 1990). Concrete plates with scouring, concrete plate jolts


Straight (one lane)
Length: 2.050 m   Width: 4 m

3. Lifting / Nodding

Design: Asphalt

Long-wave, equal-sided excitation


Curve (one lane)
Length: 1.100 m   Width: 4 m


Straight (one lane)
Length: 1.000 m   Width: 4 m

4. Rolling

Design: Asphalt

Long-wave, two way excitation


Straight (one lane)
Length: 648 m   Width: 4 m

5. Wunnenstein 2

Design: Asphalt

Reproduction of the state motorway section (A81 behind the Wunnenstein service area as of 1990). Short-wave periodic rolling condition


Straight (one lane)
Length: 1.000 m   Width: 4 m
